Description:
|
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical
industries
|
|
Construction:
|
JML series;JMF series and JMW series
|
|
Material:
|
2cr13
|
|
Max. rev:
|
2800 RPM
|
|
Rotor Type:
|
teeth
|
|
Motor power:
|
1.5kw, 2.2kw, 3kw, …22KW,30KW
|
|
Voltage:
|
110-480V
|
|
frequency
|
50hz/ 60hz
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Operated:
|
Electic
|
|
Application scope:
|
Dairy, food, beverage, pharmacy, cosmetic, etc
|
|
Packaging Details:
|
Plywood case or customerized. Or as per the request of customers
|
|
Delivery details:
|
Usually within 15 days after receiving T/T down payment
|
Working principle
The basic working principle of colloidal mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and togrind,emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.
Direction for use

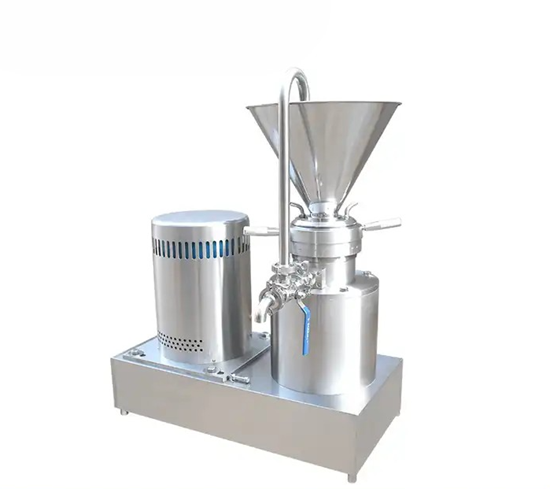

JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization,
emulsification, separation, smash and milling of various emulsions.
It is widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage, etc.), pharmacy (various syrups, nutrition liquid, Chinese Traditional Patent Medicine, poultice, etc.),
|
colloid mill
|
um
|
t/h
|
mm
|
mm
|
mm
|
r/min
|
kw
|
mm
|
|
Model
|
Fineness
|
Output
|
Diameter of Scafe
|
Diameter of Inlet
|
Diameter of Outlet
|
Speed
|
Power
|
Outline Dimension
|
|
JMF-50
|
2-40
|
0.01-0.1
|
50
|
30
|
20
|
2800
|
1.1
|
255*500*700
|
|
JML-65
|
2-40
|
0.02-0.5
|
65
|
30
|
20
|
2800
|
1.5
|
270*500*700
|
|
JMF-65
|
2-40
|
0.02-0.5
|
65
|
30
|
20
|
2800
|
2.2
|
500*345*675
|
|
JMW-80
|
2-40
|
0.3-1
|
80
|
48
|
25
|
2800
|
3
|
630*380*790
|
|
JMF-80
|
2-40
|
0.3-1
|
80
|
48
|
25
|
2800
|
4
|
700*570*920
|
|
JMW-100
|
2-40
|
0.5-2
|
100
|
66
|
25
|
2800
|
5.5
|
680*370*900
|
|
JML-100
|
2-40
|
0.5-2
|
100
|
66
|
25
|
2800
|
5.5
|
390*645*980
|
|
JMF-100
|
2-40
|
0.5-2
|
100
|
66
|
25
|
2800
|
5.5/7.5
|
800*645*980
|
|
JMW-120
|
2-40
|
0.5-3
|
120
|
66
|
32
|
2800
|
7.5
|
680*370*900
|
|
JMF-120
|
2-40
|
0.5-3
|
120
|
66
|
32
|
2800
|
7.5
|
800*645*980
|
|
JMW-140
|
2-40
|
0.5-4
|
140
|
66
|
32
|
2800
|
7.5
|
680*370*900
|
|
W L F
|
