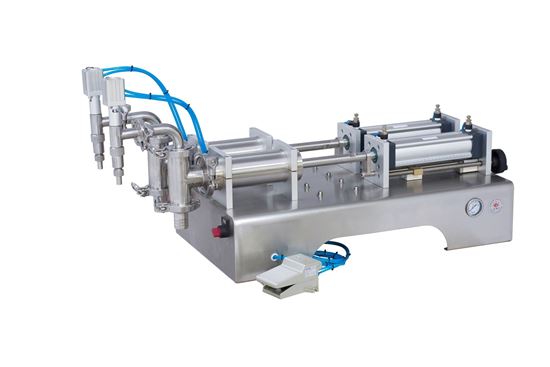

Two heads water filling machine for liquid only

Two heads pneumatic water filling machine for shampoo, oil, perfume, Liquid filler in Business & Industrial, Packing & Shipping, Other Packing. Notes: Two heads water filling machine is only for liquid filling, not for paste filling.it can fill the water, juice, oil, milk and more.

Be the first to review this product

Filling range *

5-50ml
15-150ml
30-300ml [+$10.00]
50-500ml [+$20.00]
100-1000ml [+$30.00]
300-2600ml [+$330.00]
1000-5000ml [+$630.00]

$1,069.00

Qty:

Products specifications

Model	F-Y2
Application	Only for liquid filling,not for paste filling.it can fill the water,juice, oil.milk
Filling head	Two heads
Driven Type	Pneumatic
Air pressure range	4-6kg/cm2
Capacity	0-60 bottles per minute
Dimensions	1004331mm3

Principle

Semi-automatic two heads pneumatic water filling machine piston filler. Driven by a cyliner and piston is made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.

Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.

Materials are used 304 stainless steel materials, in line with the GMP requirements.

Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Features

1. Approximate Speed 20-60 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)

2. Suitable to fill low to high-density liquids (0 10,000 cps)

3. All Parts in Contact with Product are Food Grade (SS 304)

4. Stainless Steel Construction

5. Rugged Rotary Valve System Design

6. Pneumatic Operation

7. Silica gel O-ring System(can bear 200 Celsius degree)

8. has good acid and alkali resistance,corrosion resistance

9. Piston Feed Speed Adjustment

10. No-drip Option Included and Installed

11. Extremely Accurate (+/- 1%)

12. Extremely Easy to Clean and Maintain

13. Sanitary Stainless Steel Quick Disconnect Fittings

14. Extremely Easy to Operate

15. Quick Connect/Disconnect Pneumatic Fittings.

16. Double heads, Adjustable, could be used separately.

Control Panel

Semi Auto/Continuous Operation Selector Switch

Air Pressure Gauge

Air Intake Pressure Adjustment

Piston Volume Adjust

water filling machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment. you should prepare the air compressor by yourself.pls choose the 0.4-0.8MPa

Now we supply to customers the full Pneumatic water filling machine ( no electric), it is Explosion-proof model, and it is more safe. we use the authentic AirTAC parts.

NOTE

We have these nozzles in available:

3mm,4mm,6mm,8mm,10mm,12mm. (15-150ml,30-300ml,50-500ml,100-1000ml) filling machine.

12mm,15mm,20mm,25mm,28mm. (300-2600ml,500-3500ml,1000-5000ml) filling machine.

Normally if you choose the 15-150ml,30-300ml,50-500ml,100-1000ml,we will send you the 12mm nozzle, and if you choose the 300-2600ml,500-3500ml,1000-5000ml.we will send you the 28mm nozzle,

if you want the different size nozzle, pls contact with me :chelseaouri@gmail.com

Pls leave us what do you want to fill ? And what is your filling volume?

And if your particle is bigger than 5mm,pls contact with us, we will change the rotary valve to bigger ones, and will change the filling head and filling nozzle to bigger ones.

And if you fill the corrosive stuff we will ship you the teflon seal ring part, pls contact with me .
